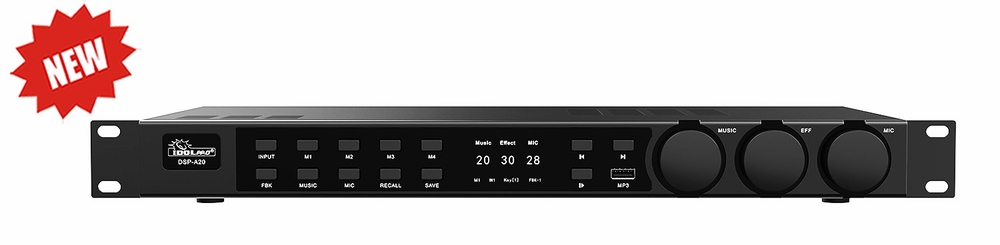

IDOlpro DSP-A20 Digital Signal Processor Multi Functions Karaoke Processor Mixer New 2024
Features:
- 5.1 decoder, double channels microphone setting, music DEQ;
- With speaker management functions, main channel, subwoofer, center and surround can set independently.
- PEQ (Music with 15 bands PEQ, microphone with 20 band PEQ.)
- New software, support data save and send, easy to operate.
- Echo/Reverb with 7 bands PEQ;(PEQ/LSH/HSH switchover)
- Music and microphone data can be set at Surround( and subwoofer) channel.
- Every channels has delay function, suitable for any size rooms and speaker placement.
- The fifth generation feedback project.
- New circuit design, wide frequency response, high speed CPU, processing more clearly.
- With record output, output data can be set independently.
- Admin/User mode switchover, to insure safety.
Specification:
-
Music
- SNR: >91db
- THD: ≤0.6% output XLR 1 Vrms 1 Khz
- Frequency response: 10HZ-20KHZ ≤3.0db
- Input sensibility/impedance: 350±10%mv/20kohm
- Max Output: ≥2.5VIms XLR out/ ≥6.0Vpp XLR out
- Gain: 10db±1.0db
Microphone
- SNR: ≥80dB
- THD: ≤0.8% output XLR 1 Vrms 1 Khz
- Frequency response: 100HZ-20KHZ ≤ ±3db
- Input sensitivity/Impedance: 50mv± 10%mv/2kohm
- Max Output: >2.5VIms XLR out/>6.0Vpp XLR out
- Gain: 26db+1.5db
Other Functions
- MIC input socket: 6.35 MIC socket 5piece
- Computer connecting port: USB connecting port.
- Power supply: AC 220V/50HZ+ 10
- Fuse: F2A/250VAC
- Power: AC 220V/50HZ+ 10
- Weight:9.2 lbs.
- Size: 19W x 8D x 1.7H(inches)
